What's the difference between 3, 4 & 5 Axis CNC Milling?

Computer Numerical Control (CNC) machining is a manufacturing process in which pre-programmed computer software dictates the movement of factory tools and machinery. CNC machines come in many different forms with the most common being the 3-, 4- and 5-axis CNC machines. With each additional axis of freedom, the complexity of parts that can be produced increases. Each axis determines the various directions for the tool's movement, and these machines vary in the number of axes. Understanding how 3-, 4-, and 5-axis CNC machines differ from one another will help manufacturers choose the finest equipment for their specific needs. In this piece, we'll break down each sort of machine, describing its advantages, applications, and conditions under which it should be chosen.

What Is a Multi-Axis CNC Machine?

A multi-axis CNC machine is a type of computer-controlled machine tool that can move the cutting tool along multiple axes. Each axis allows for movement in a specific direction, typically along the X, Y, and Z planes (horizontal, vertical, and depth). The more axes a machine has, the more complex and intricate parts it can produce. Multi-axis CNC machines enable manufacturers to create parts that would otherwise require several setups, reducing errors and increasing efficiency.

Understanding CNC Axes

Each “axis” in a CNC router represents a direction of motion the cutting tool or workpiece can move in：

3 axis has X, Y, and Z axes

4 axis has X, Y, Z, and A axes

5 axis has X, Y, Z, B, and C axes

Adding more axes adds more freedom of movement — usually rotational — allowing the cutter to approach material from different angles. More axes mean greater complexity, flexibility, and cost.

3-axis, 4-axis, and 5-axis CNC Machine Comparison Table

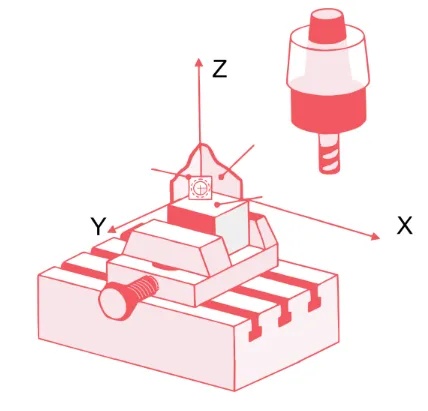

Three-Axis CNC Machines

The 3-axis CNC Drilling and Tapping Machine features X, Y and Z axis.
From your perspective
X-axis: parallel to the front of your body, moving left to right.
Y-axis: perpendicular to you, moving forward and backward
Z-axis: vertical, moving up and down

In a 3-axis CNC machine, the workpiece is held stationary as the cutting tool moves in the X-, Y- and Z- directions to achieve the desired cuts.

Benefits of 3-Axis CNC Machines:

Cost-Effectiveness: 3-axis machines are often less expensive, both initially and over time.
Simplicity: They require minimal setup time and are easier to run because of their simplicity.
Perfect for Simple Parts: Perfect for parts with simple geometries, including 2D contours, flat plates, or simple shapes.

Applications:

· Basic prototyping: Often used for prototyping and low-volume production of parts with simple designs.

· Flat Parts: Producing 2D parts or shallow 3D parts that don’t require complex contours or angles.

· Best for: signs, cabinetry, engravings, molds

Limitations

· Requires re-mounting to machine multiple sides

· Cannot access undercuts or extreme angles

While they are limited in their ability to handle more intricate tasks, 3-axis machines remain an essential tool for many industries, including automotive, aerospace, and electronics.

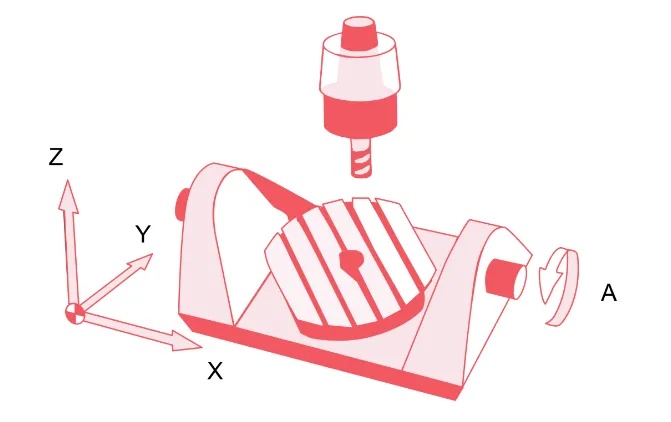

4-Axis CNC Machines

X-axis: paralll to the front of your body, moving left to right.
Y-axis: perpendicular to you, moving forward and backward
Z-axis: vertical, moving up and down
A-axis: an rotational axis that typically rotates around the X axis.

A 4-axis CNC router introduces a rotary motion — typically called the A-axis — which rotates the workpiece around the X-axis. This turns your router into a hybrid between a mill and a lathe, allowing it to carve multiple faces without repositioning the material.

How It Works

The spindle still moves along X, Y, Z, but the A-axis rotates the workpiece itself. Depending on the setup, the rotation can be indexing (move-stop-cut) or continuous (spinning while cutting).

Advantages of 4-Axis CNC Machines:

· Improve machining accuracy: 4-axis CNC machine tools by adding a rotary axis, so that the tool can cut accurately in more directions, so as to reduce the error caused by repeated clamping of the workpiece and improve machining accuracy.

· Improve machining efficiency: 4-axis machine tools are able to complete the machining of multiple surfaces in a single clamping, reducing the time required for clamping and tool setting, significantly improving machining efficiency.

Applications:

· Complex surface machining: 4-axis CNC machine tools can process complex surface parts, such as complex parts in the aerospace field and high-precision molds in mold manufacturing.

· Automatic tool changer function: 4-axis machine tools have automatic tool changer function, which can complete multiple machining functions in one clamping, improving machining efficiency and flexibility.

Limitations

· Requires CAM software that supports rotary toolpaths

· Slightly steeper learning curve

The addition of the fourth axis gives manufacturers a better ability to handle more complex part designs, but the machine still requires a relatively straightforward setup.

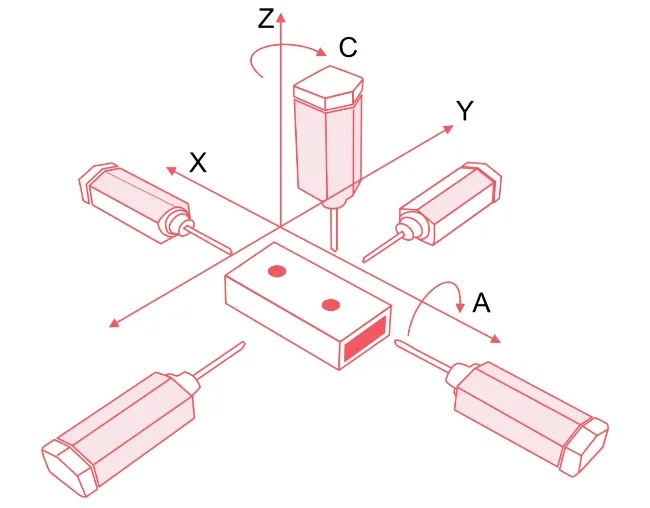

5-Axis CNC Machines

X-axis: parallel to the front of your body, moving left to right.
Y-axis: perpendicular to you, moving forward and backward.
Z-axis: vertical, moving up and down.
A-axis: an rotational axis that typically rotates around the X axis
B (or C) axis: an rotational axis that typically rotates around the Y or Z axis

In addition to automatic movements along the X, Y, and Z axes, 5 axis CNC machines can select two of the three rotational axes (A,B,C) to use. The A, B, and C axes perform a 180° rotation around the X, Y, and Z axes, correspondingly.

5-Axis CNC Machine Benefits:

Ultimate Precision: Accuracy, human error, and consistency are all significantly increased when complex objects can be machined from all sides in a single configuration.

Complex Geometries: Able to manufacture items with complex, detailed geometries, including molds, turbine blades, and aerospace components that need to have a variety of angular features.

Decreased Setup Time: The machine boosts throughput and decreases setup time because it can reach every portion of the part without repositioning.

Improved Surface Finish Quality: For complex items, the simultaneous multidirectional movement guarantees finer surface finishes and more accuracy.

Applications:

· Aerospace and Medical Devices: Used extensively in aerospace and medical industries where precision and complexity are critical.

· Molds and Dies: Perfect for producing complex molds, tooling, and high-performance parts that require high precision.

Limitations

· Significantly higher cost and maintenance

· Requires advanced CAM software and experience

· Overkill for most woodworking or hobby tasks

While 5-axis CNC machines are often more expensive and require more advanced programming, they are essential for industries that demand the highest levels of accuracy and efficiency in production.

3-Axis vs 4-Axis vs 5-Axis: Quick Comparison

Key Factors to Consider When Purchasing 3-axis, 4-axis, and 5-axis CNC Machine

Complexity of the Part:

For simple parts: 3-axis machines suffice.
For rotational parts or parts with features on multiple faces: Consider 4-axis.
For intricate or free-form geometries: Opt for 5-axis.

Budget and Production Volume:

Lower-budget operations can start with 3-axis or 4-axis machines.
High-volume or complex jobs benefit from the efficiency of 5-axis machines.

Programming and Skill Level:

3-axis machines are easier to program and operate.
4-axis and 5-axis machines demand advanced CAD/CAM skills and expertise.

Reliability of CNC Drilling Tapping Center Machine Suppliers

You’d better choose a CNC drill tap machine supplier with more than 10 years experience in CNC drilling and tapping machine manufacturing, because a sophisticated manufacturer can thoroughly understand your parts production requirement and offer you the best suitable solutions. Additionally, it’s beneficial if the supplier has a self-operated factory, as these factories can typically offer better price discounts and greater flexibility in CNC machine customisation.

Which CNC Router Do You Need?

Choosing the right number of axes depends on your goals, budget, and production style:

Choose a 3-Axis CNC if:

You’re new to CNC machining or run a small workshop.

Your projects are mostly flat panels, signs, and 3D reliefs.

You want an affordable, low-maintenance machine.

Choose a 4-Axis CNC if:

You frequently carve cylindrical or multi-sided objects.

You want fewer setups and faster production cycles.

You already have experience with 3-axis CAM software.

Choose a 5-Axis CNC if:

You manufacture parts requiring undercuts or complex geometry.

You work in aerospace, tooling, or high-end prototyping.

You need maximum precision and can justify the investment.

For most makers and small businesses, a 3- or 4-axis router provides all the flexibility you need. 5-axis systems are incredible, but their cost and complexity are designed for industrial workflows. Feel free to contact Ling Yueyang if you have any questions about purchasing a CNC drilling and tapping machine.

How Ling Yueyang Leverages Multi-Axis CNC for Superior Machining

The significance of selecting the appropriate CNC machine for every job is something we at Ling Yueyang are aware of. We provide a variety of services to satisfy the demands of customers in different industries by integrating cutting-edge multi-axis technology. Our 5-axis CNC machining skills allow us to create complex, high-precision products with excellent surface finishes, while our 3-axis and 4-axis solutions provide flexibility and efficiency for simpler designs. From prototyping to full-scale production, Ling Yueyang is dedicated to providing high-end, tailored solutions with an emphasis on speed, precision, and cost-effectiveness.

Conclusion

You can select a 3-axis, 4-axis, or 5-axis CNC machine based on the complexity and precision required for the products you are manufacturing.

3-axis machines are better suited for lower volumes and simpler designs, whereas 4-axis machines offer more options for more complex geometries. A 5-axis CNC machine is the best option for producing complex and sophisticated items.

A number of multi-axis machining solutions that can manage a range of item complexities are offered by Ling Yueyang. We have the know-how and technology to satisfy your needs, whether you're dealing with straightforward designs or require accuracy for sophisticated components.

Whether you’re an SME machine shop or a multinational OEM, Ling Yueyang offers a comprehensive end-to-end MRP system to enhance your inquiries, quoting, and pre-production processes.

Find out how Ling Yueyang can supercharge your Additive Manufacturing and CNC Machining processes today.
