What is 3-Axis VMC?

In modern manufacturing, precision and efficiency are crucial for producing high-quality parts. 3-Axis Vertical Machining Centers (VMCs) are among the most widely used CNC machines, offering reliable performance for a variety of industries including mold making, automotive, aerospace, and general metalworking.

1. Understanding 3-Axis VMC

A 3-Axis VMC is a computer-controlled machine tool where the cutting tool moves along three axes—X (left-right), Y (front-back), and Z (up-down). This setup allows precise material removal and complex 3D part shaping while maintaining high repeatability and accuracy. Unlike manual milling machines, a 3-Axis VMC automates motion control, which greatly improves production speed and consistency.

Key Features:

●  Three-Axis Control: Full control over X, Y, and Z axes for precise 3D machining.

●  Automated Operation: CNC programming reduces human error and increases productivity.

●  Versatile Applications: Suitable for cutting metals, plastics, composites, and more.

●  High Accuracy and Repeatability: Essential for producing molds, dies, and precision components.

2. Common Types of 3-Axis VMCs

Depending on design and application, 3-Axis VMCs can be categorized as follows:

●  Linear Guide VMC: Uses linear guides for smooth, high-speed, and precise movement; ideal for light cutting and precision machining.

●  Box Way / Hard Rail VMC: Features heavy-duty box rails for higher rigidity and load capacity; suitable for heavy cutting and industrial parts.

●  High-Speed VMC: Optimized for rapid spindle rotation, perfect for mold and small component machining.

●  Standard VMC: Designed for general-purpose machining with moderate speed and torque.

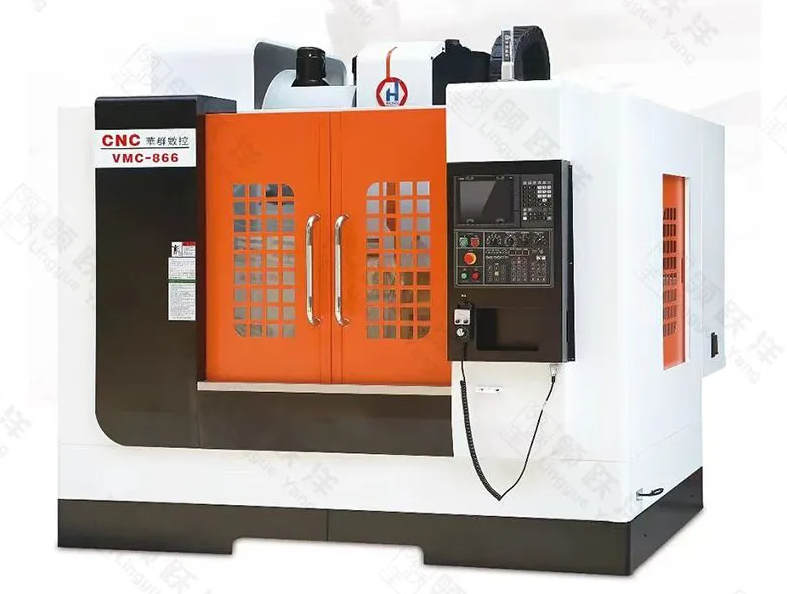

3. Ling Yueyang High-Speed 3-Axis VMC Series

At Ling Yueyang, we specialize in high-speed machining solutions tailored to meet the demands of modern manufacturing. Our High-Speed Machining Center (X/Y/Z Axis Rail) Series is designed to deliver superior speed, accuracy, and reliability.

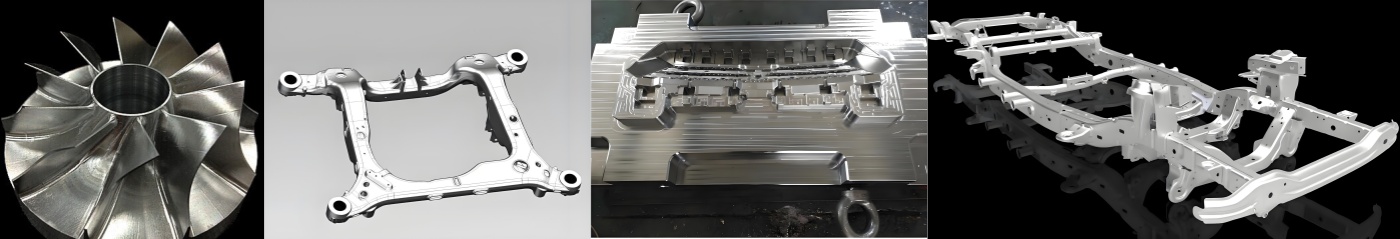

Processed products:

Key Features:

●  High-Speed Linear Guide Rails: All axes are equipped with precision-grade linear motion rails that provide rapid acceleration and deceleration while minimizing friction and thermal deformation.

●  Stable Structure & Rigid Base: Engineered with a heavy-duty cast iron frame and enhanced rib design, ensuring maximum rigidity and vibration resistance during high-speed cutting operations.

●  High-Speed Spindle System: Optional high-frequency spindle (up to 24,000 RPM) with superior cooling system for high-speed and high-precision machining of metals, composites, and mold components.

●  Advanced CNC Control System: Compatible with leading controllers (FANUC, Siemens, Mitsubishi) for user-friendly programming, multi-axis coordination, and real-time monitoring.

●  Precision Ball Screws & Couplings: Pre-tensioned ball screws and precision couplings ensure backlash-free transmission and accurate positioning.

●  Efficient Chip Removal & Cooling: Equipped with automatic chip conveyors, coolant circulation systems, and optional mist/flood cooling for continuous operation.

Typical Applications:

●  Aerospace Components

●  Automotive Mold & Die Processing

●  Precision Electronics Parts

●  Medical Device Machining

●  Metal Prototyping and Custom Components

Advantages:

●  Fast and stable motion across X, Y, Z axes

●  High cutting accuracy with minimal tool wear

●  Excellent surface finish and repeatability

●  Modular customization options for diverse industries

●  Reduced cycle times and improved productivity

4. Protection and Maintenance Considerations

Maintaining the performance and longevity of a 3-Axis VMC requires proper protection and regular maintenance. During operation, flying chips, coolant splashes, and dust can easily damage guideways, ball screws, and other precision components. To prevent this, it is essential to:

●  Regular Cleaning: Keep the machine free from chips, dust, and debris that may accumulate on guideways, ball screws, and the worktable. This prevents mechanical interference and preserves precision.

●  Lubrication: Consistently apply the recommended lubricants to moving components, including linear guides, ball screws, and spindle assemblies, to reduce friction and wear.

●  Inspection and Adjustment: Periodically inspect critical parts such as spindle bearings, drive systems, and alignment of axes. Promptly adjust or replace components showing signs of wear to maintain performance.

●  Temperature and Load Management: Monitor motor and spindle temperatures during operation to avoid overheating. Avoid exceeding the machine’s rated loads to ensure stable long-term operation.

●  Software and Control System Checks: Regularly update CNC software, verify calibration, and ensure that safety interlocks are functioning correctly to prevent operational errors.

By implementing a systematic maintenance routine and monitoring operational conditions, manufacturers can maximize machine uptime, maintain high precision, and extend the service life of their 3-Axis VMCs.

5. Conclusion

The 3-Axis VMC is a cornerstone in modern CNC machining, offering versatility, precision, and efficiency. Ling Yueyang High-Speed Machining Center Series exemplifies these qualities, providing tailored solutions for industries requiring high-performance machining. By understanding the capabilities and maintenance requirements of 3-Axis VMCs, manufacturers can make informed decisions to enhance productivity and ensure long-term operational success. Contact Us Now.
